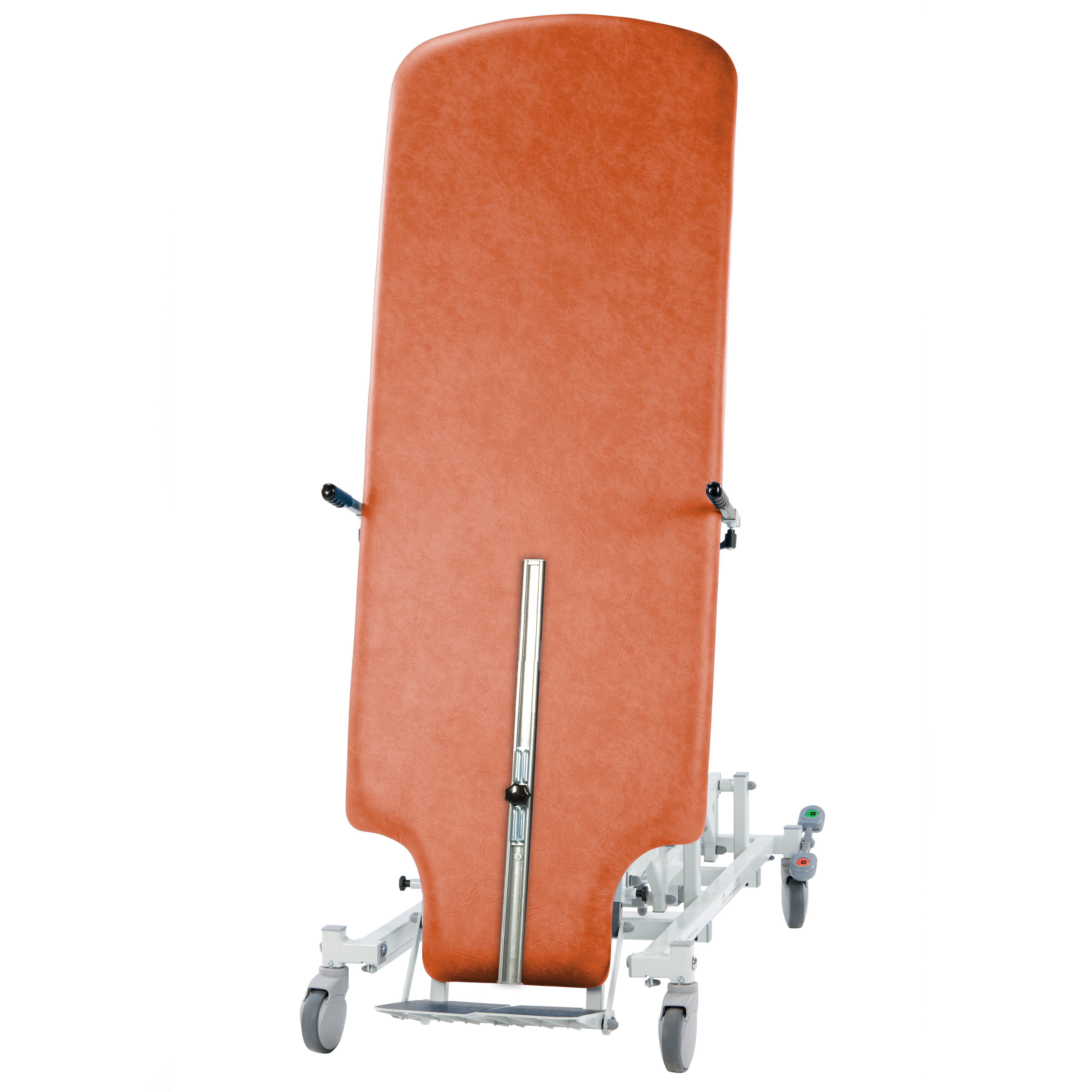

Standard Therapy Tilt Table Model ST7641DL - Electric height and tilt - Divided leg version
- These excellent Tilt Tables have been designed to meet the requirements of a wide range of applications for rehabilitation, assessment, and examination procedures.
- This version has the "divided leg design" which provides individual harness security for the lower limbs.
- It also includes the accessory work table, patient handgrips and harnesses as standard
- Our plinths are custom made to order here in the UK.
- Brexit and Covid-19 related production demands means that the turnaround time on all builds is currently 12 weeks.
-
Shipping info
To ensure our level of quality control all couches are hand made to order. Unless stated above in the main production description the current lead time on plinth construction is 12 weeks. As each plinth is custom made any cancellation will result in a cancellation charge.
When not stated in the product description above a two-man delivery service can be offered at an additional charge. For delivery zones and their associated costs see the main Shipping Info TAB below to check your postcode and additional charges.
-
Payment methods
-
Return Policy
As our plinths are all custom made to order, the cancellation of an order once the build has begun will be subject to a 20% cancellation fee. Should a plinth be delivered and a request subsequently made to return it to us there is similarly a 20% restocking fee.
Original delivery fees cannot be refunded and there is a return delivery collection charge of £145 plus VAT which will be taken from any refund due.
Standard Model Specification
- Safe working load with lifting and tilting capacity (from minimum height) of 225kgs (495lbs=35 stone)

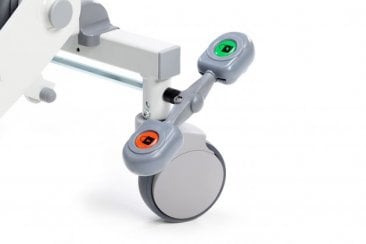

- Large wheel design with central locking and steering facility on Standard model
- Individual braking castors on Economy model
- Electric height and tilting operation with hand switch control
- Adjustable angle dual footboards – positive and negative (+15 to -30)
- Accessory work table is supplied with this Standard model - optional with Economy model
- Supplied with patient handgrips and set of harnesses
- Height range 47cm to 101cm (18-39”), Tilt angle from horizontal to 90 degrees vertical
- Lowers to wheelchair height for ease of patient transfer
- Tilt angle inclinometer fitted as standard
- Purpose made precision bearings on all pivot points
- Clearance beneath frame for mobile hoist
- Choice of upholstery colours
Optional Couch Accessories
- Model 6057 Battery back-up facility
- Model 6058 Hip/Leg Stabilisers (pair)
- Model 6059 Adjustable Pommel Support
- Model 6060 Child Footboard Facility
- Model 6007 Head Support Cushion
- Model 6062 Tilt Table – Standard Harness Set
- Model 6063 Tilt Table – Dual Leg Harness Set #
- Model 6064 Tilt Table – Pair Dual Knee Harnesses#
- Model 6065 Tilt Table – Standard Harness – Wide
- Model 6066 Tilt Table – Standard Harness - Narrow
PREMIUM PLINTH RANGE
Warranty Specifications
- Safe working load and lifting capacity (from minimum height) of 240kgs (528lbs=37.7 stone)
- Warranty – Motors- 2 years
- Warranty – Gas Struts - 2 years
- Warranty – Frame - 10 years
- Cables and leads - 1 year
- Hand/foot switches - 1 year
-
Upholstery ColourSky Blue, Canard, Dark Grey, Dark Blue, Black, White, Light Grey, Cream, Olive, Lotus Green, Pepper, Brown, Poterie, Red, Burgundy
-
Up Down MechanismElectric Hand Switch (TMO-2WH), Foot Switch (TMO-2WF)
-
Matching Head support cushionNo thanks, 1 x 6007 Head Support, 2 x 6007 Head Supports
-
60 mm Memory foam top sheetNo thanks, 1 x 6076 Memory Foam Top Sheet
-
Battery back-up facilityNo thanks, 1 x 6057 Battery back-up facility
-
2-man delivery? (see shipping zone chart)One Man Standard Delivery, 2 Man Delivery (Pink Area 1), 2 Man Delivery (Yellow Area 2), 2 Man Delivery (Purple Area 3), 2 Man Delivery (Teal Area 4)
-
ManufacturerPerformance Physio Plinths
-
Adjustable Pommel SupportNo thanks, Yes, 1 x 6059 Adjustable Pommel Support
-
Lateral Hip/Leg Stabilisers (pair)No thanks, 1 x ST6058 Lateral Supports / Leg Stabilisers (Pair)
Please note that all our plinths are custom made to order. Brexit and Covid related issues have lead to production currently taking from 10-12 weeks. After production is complete the plinths are then scheduled for delivery.
This shipping refers to the carriage of our larger plinths (not the portables). The carriage charge for all UK mainland deliveries is £80 +vat per unit (£120 for 2 units, £160 for 3 units, £200 for 4 units delivered to the same address). For any volume orders of 5 or more we will quote you.
Two Person Delivery Assistance
We can provide a two person delivery service if you need additional assistance to locate the plinth in your home or building. The cost of this is dependent on the region you are location which is based on the time the additional person would be required away from the warehouse. See the map below for the pricing. The escalating costs relate to the Zone 1 (pink), Zone 2 (Yellow), Zone 3 (Purple) and Zone 4 (Teal) as shown on our product delivery options dropdown.
Overseas Shipping and Freight
Currently we only have foreign orders delivery to a UK Mainland based freight forwarder of your choice. We are not exporting directly ourselves.
Pallet cartons are 205x77x58cm
Weight: 110kg approx each
Overseas Warranty Provisions (Outside of mainland UK)
- Our plinth warranties do extend to foreign orders however these are subject to the following terms and conditions
- We will honour our standard warranty issues when the plinth is located in the UK however for foreign orders we will ship replacement parts at the customers expense only.
- If the customer then returns the faulty part to us, such that we can check and approve the defect, we will credit back the customer the cost of the replacement part. The reimbursement does not include the shipping.
- As our plinths are all custom made to order, the cancellation of an order once the build has begun will be subject to a 20% cancellation fee.
- Should a plinth be delivered and a request subsequently made to return it to us there is similarly a 20% restocking fee. Original delivery fees cannot be refunded and there is a return delivery collection charge of £145 plus VAT which will be taken from any refund due.
