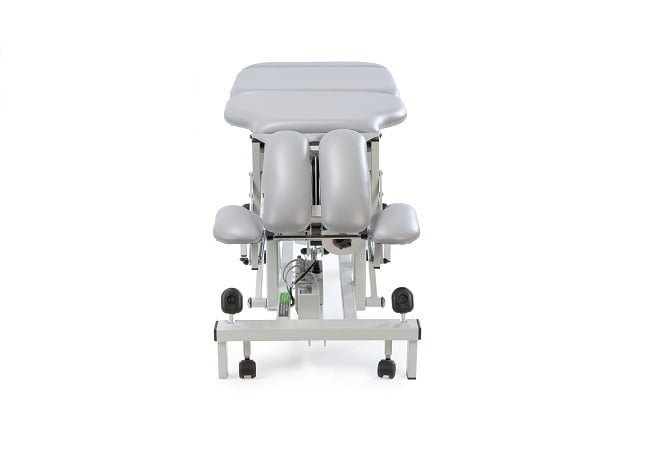

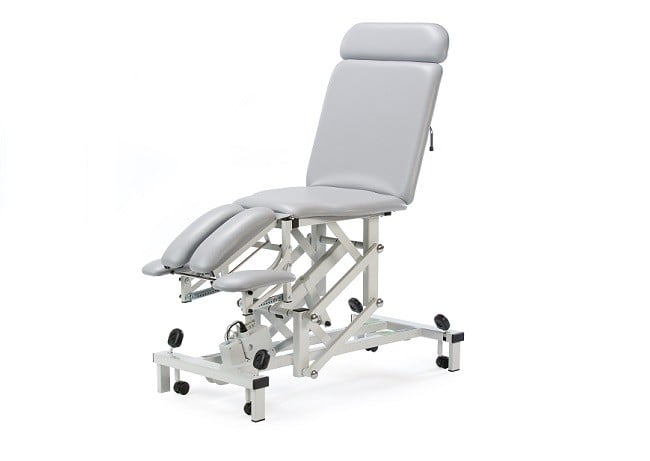

Osteopathic Couch / Plinth - Hydraulic (Model 516H)
Designed for osteopathic techniques, this model features a two-piece head section with full length breathing slot, an integrated paper roll holder (optional extra) and height adjustable armrests to reduce tension and provide additional comfort for the patient during head and neck procedures.
Both the head section and foot sections feature positive and negative positioning.
The couch features a sliding foot extension as standard to cater for taller patients.
During delivery our specialist partners will move the couch into the desired room whether upstairs or down and unpack.
*Please note that this plinth is custom made to order and the current lead time is approximately 4-6 weeks.
To ensure our level of quality control all couches are hand made to order. Unless stated above in the main production description the current lead time on plinth construction is 12 weeks. As each plinth is custom made any cancellation will result in a cancellation charge.
When not stated in the product description above a two-man delivery service can be offered at an additional charge. For delivery zones and their associated costs see the main Shipping Info TAB below to check your postcode and additional charges.
As our plinths are all custom made to order, the cancellation of an order once the build has begun will be subject to a 20% cancellation fee. Should a plinth be delivered and a request subsequently made to return it to us there is similarly a 20% restocking fee.
Original delivery fees cannot be refunded and there is a return delivery collection charge of £145 plus VAT which will be taken from any refund due.
- UK designed & manufactured
- Lifetime frame & 5 year parts guarantee
- Very strong & rigid frame
- High-performance bearings on all pivot points
- Safe working load & lift capacity 250kg
- Hydraulic height operation
- Adjustable head section from -30° to +75°
- Foot section adjustable from -25° to +85°
- Short head section for head and neck manipulation procedures
- Integrated breathing slot
- Paper roll holder
- Armrests lower 28cms for prone treatments
- Extendable foot section
- Retractable wheel system
- Adjustable foot for uneven floors
- Anti-entrapment gas struts
- Choice of width 55cm (narrow) or 63cm (standard)
- Hoist clearance 13cm

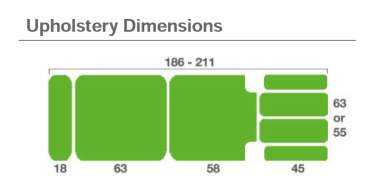

- Length: 186cm (73″) approx; or 186cm – 211cm (73” – 83”) approx with foot extension option
- Width: 55cm or 63cm (22” or 25”) approx
- Height: 47cm – 97cm approx (18” – 38”) approx

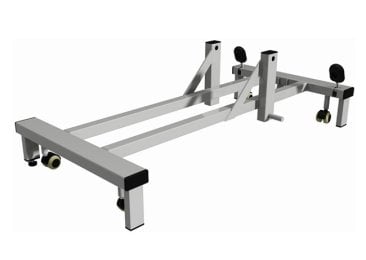

- Linked Castor Base - Exclusive to the 510 Manipulation Range, the linked castor base provides the added convenience of having a single point of operation to lift and lower the couch on or off the castors.
Upholstery Colour (for Padded Rails)Cobalt, Wasabi, Cocoa, Citrus Green, Grape, Marigold, Mulled Wine, Almond, Candy, Pillarbox, Sapphire, Gingersnap, Atlantic, Applemint, Lupin, Denim, Jasmine, Cool Blue, Battleship, Rainforest
Matching D-Support CushionNo thanks, 1 x Support Cushion (DCUSH), 2 x Support Cushions (DCUSH)
Plinth WidthStandard (63cm), Narrow (55cm)
Plinth CoverNo thanks, Dark Blue with breathing hole, Dark Green with breathing hole, Cream with breathing hole, White with breathing hole, Dark Blue without breathing hole, Dark Green without breathing hole, Cream without breathing hole, White without breathing hole
Foot Extension (510EXT)No thanks, 1 x Foot Extension (510EXT)
Linked Castor BaseNo thanks, 1 x Linked Castor Base
ManufacturerPerformance Physio Plinths
Please note that all our plinths are custom made to order. Brexit and Covid related issues have lead to production currently taking from 10-12 weeks. After production is complete the plinths are then scheduled for delivery.
This shipping refers to the carriage of our larger plinths (not the portables). The carriage charge for all UK mainland deliveries is £80 +vat per unit (£120 for 2 units, £160 for 3 units, £200 for 4 units delivered to the same address). For any volume orders of 5 or more we will quote you.
Two Person Delivery Assistance
We can provide a two person delivery service if you need additional assistance to locate the plinth in your home or building. The cost of this is dependent on the region you are location which is based on the time the additional person would be required away from the warehouse. See the map below for the pricing. The escalating costs relate to the Zone 1 (pink), Zone 2 (Yellow), Zone 3 (Purple) and Zone 4 (Teal) as shown on our product delivery options dropdown.
Overseas Shipping and Freight
Currently we only have foreign orders delivery to a UK Mainland based freight forwarder of your choice. We are not exporting directly ourselves.
Pallet cartons are 205x77x58cm
Weight: 110kg approx each
Overseas Warranty Provisions (Outside of mainland UK)
- Our plinth warranties do extend to foreign orders however these are subject to the following terms and conditions
- We will honour our standard warranty issues when the plinth is located in the UK however for foreign orders we will ship replacement parts at the customers expense only.
- If the customer then returns the faulty part to us, such that we can check and approve the defect, we will credit back the customer the cost of the replacement part. The reimbursement does not include the shipping.
- As our plinths are all custom made to order, the cancellation of an order once the build has begun will be subject to a 20% cancellation fee.
- Should a plinth be delivered and a request subsequently made to return it to us there is similarly a 20% restocking fee. Original delivery fees cannot be refunded and there is a return delivery collection charge of £145 plus VAT which will be taken from any refund due.
